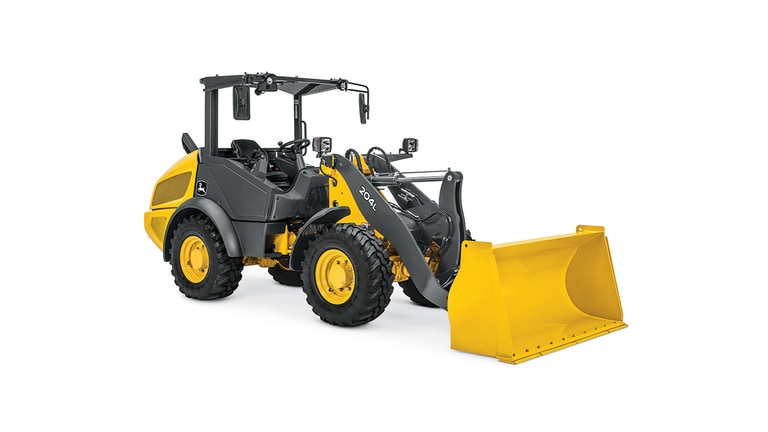

John Deere 204L

Compact Wheel Loaders



Key Features

  • Net Power: 45 kW (61 hp) @ 2,200 rpm
  • Operating Weight: 5,355 kg (11,806 lb.)
  • Bucket Capacity: 0.8-1.1 m³ (1.0-1.4 cu. yd.)
Call Today 866-475-0145

I'm Interested    Call





DRIVELINE

Engine Manufacturer

YANMAR

Engine Model

4TNV98

Emission Rating

Tier 4

Displacement, ltr (Inches³)

3.3 (203)

Rated Speed, rpm

2200

Engine Output - Net, kW (hp)

45 (61)

Torque, Nm (lbf / ft)

239 (176)

Transmission Type

Hydrostatic

Front Differential Type

Limited Slip - 45%

Rear Differential Type

Limited Slip - 45%

Tire size - Standard

365 / 70 R18

Service Brake - Type

Wet Disc & Drum

Service Brake - Location

Driveline

Service Brake - Actuation

Hydraulic

Parking Brake - Type

Wet Disc



DIMENSIONS

Height - Over Cab, mm (ft/in)

2450 (7 ft 11 in)

Wheelbase, mm (ft/in)

2150 (7 ft 1 in)

Length - Including Bucket, mm (ft/in)

5420 (17 ft 4 in)

Ground clearance, mm (inches)

318 (12.5)

Width Over tires - Std, mm (ft/in)

1760 (5 ft 9 in)

Height - Pivot Pin, mm (ft/in)

3180 (10 ft 5 in)

Reach - At 2130mm 45° Dump, mm (ft/in)

1490 (4 ft 11 in)

Turning Circle - Maximum, mm (ft/in)

8600 (28 ft 2 in)



CAPACITIES

Fuel Tank, ltr (gallons (US))

50 (13.2)

Hydraulic Tank, ltr (gallons (US))

90 (23.8)

Axle - Front, ltr (gallons (US))

6 (1.6)

Axle - Rear, ltr (gallons (US))

6 (1.6)

Transmission, ltr (gallons (US))

1 (0.275)

Heaped Capacity, m³ (yd³)

0.8 (1)

Bucket Capacity - Smallest, m³ (yd³)

0.8 (1)

Largest bucket capacity, m³ (yd³)

1.1 (1.4)

Breakout - Bucket , kgf (lbf)

4170 (9190)

Ride Control System

Optional

System Voltage, V

12

Alternator Output, Amp

80

Pump Type

Gear

Pump Flow, lt/min (gallons (US) / min)

70 (18)

System Pressure, bar (PSI)

230 (3335)




  SHOW MORE     SHOW LESS
