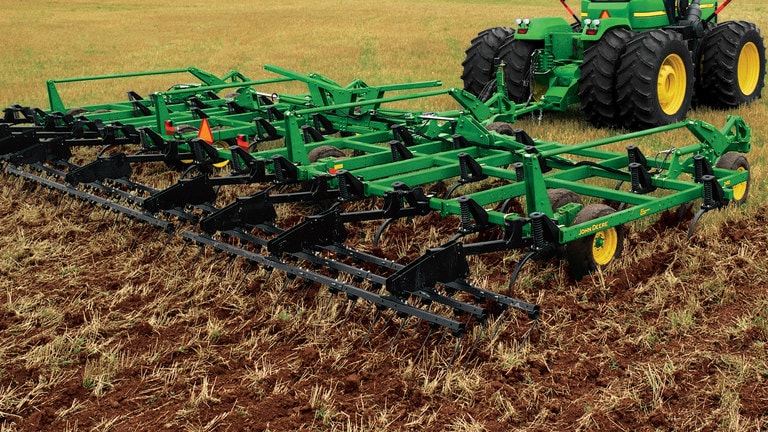

Rigid frame

Option 1
3.05 to 5.49 m
10 to 18 ft

Drawn rigid fold

Option 1
3.35 to 4.88 m
11 to 16 ft

3-section

Option 1
4.67 m
15.33 ft
Mainframe: 3.05 m
10 ft
Option 2
5.36 m
17.58 ft
Mainframe: 3.66 m
12 ft
Option 3
6.27 m
20.58 ft
Mainframe: 4.57 m
15 ft

5-section

Option 1
5.26 m
17.25 ft
Mainframe: 3.66 m
12 ft
Option 2
Mainframe: 6.1 m
20 ft
Mainframe: 4.57 m
15 ft

Rigid frame

Rigid over-center fold

3-section

Option 1
3.3 to 4.2 m
10.83 to 13.75 ft
Mainframe: 3.05 m
10 ft
Option 2
3.28 to 5.05 m
10.75 to 16.58 ft
Mainframe: 3.66 m
12 ft
Option 3
3.89 to 5.36 m
12.75 to 17.58 ft
Mainframe: 4.57 m
15 ft

5-section

Option 1
4.37 to 4.98 m
14.33 to 16.33 ft
Mainframe: 3.66 m
12 ft
Option 2
4.4 to 5.3 m
14.42 to 17.42 ft
Mainframe: 4.57 m
15 ft

Maximum depth

Rigid, TruPosition: maximum: 20.32 cm
8 in.
Spring-reset
TruDepth: maximum: 30.5 cm
12 in.

Miles per hour

8-11.3 km/h
5 to 7 mph

Horsepower per foot

14.7 to 24.5 kW/m kW
6.0 to 10 hp/ft
Rigid and TruPosition standards on spacing: 30.5 cm
12 in.
11 to 18.35 kW/m
4.5 to 7.5 hp/ft
Rigid and TruPosition standards on spacing of: 40.6 cm
16 in.
14.7 to 34.3 kW/m (6.0 to 14 hp/ft) - Spring-reset and TruDepth standards on spacing of: 30.5 cm (12 in.)
11 to 26.9 kW/m (4.5 to 11 hp/ft) - Spring-reset and TruDepth standards on spacing of 40.6 cm (16 in.)

Option 1

Single point

Option 2

AccuDepth

Description

T-Hitch: on Rigid and 3-section: 15.2x25.4 cm
6x10 in.
On 5-section: 15.2x30.5 cm
6x12 in.

Tubing

High strength, box beam steel cross tubes: 10.2x10.2 cm
4x4 in.
End tubes, patented 4-bar tube-through-tube frame design, welded construction: 5.08x12.7 cm
2x5 in.

Fore-and-aft

340.4 cm
134 in.

Underframe clearance

Rigid and TruPosition: 71.1 cm
28 in.
Spring-reset and TruDepth: 81.3 cm
32 in.

Inches

30.5 cm
12 in.
40.6 cm
16 in.

Option 1

Spec
3.2x5.08x71.1 cm
1.25x2x28 in.

Maximum operating depth
20.3 cm
8 in.
Underframe clearance
71.1 cm
28 in.
Spacing
30.5 cm
12 in.
40.6 cm
16 in.
Rigid

Option 2

Spec
3.2x5.08x81.3 cm
1.25x2x32 in.
Trip height
25.4 cm
10 in.
Maximum operating depth
20.3 cm
8 in.
Underframe clearance
81.3 cm
32 in.
Spacing
30.5 cm
12 in.
40.6 cm
16 in.
Spring-reset

Option 3

Spec
3.2x5.08x71.1 cm
1.25x2x28 in.
Trip height
25.4 cm
10 in.
Maximum operating depth
30.5 cm
12 in.
Underframe clearance
71.1 cm
28 in.
Spacing
30.5 cm
12 in.
40.6 cm
16 in.
TruPosition

Option 4

Spec
5.08x3.2x81.3 cm
2x1.25x32 in.
Trip height
27.9 cm
11 in.
Maximum operating depth
30.5 cm
12 in.
Underframe clearance
81.3 cm
32 in.
Spacing
30.5 cm
12 in.
40.6 cm
16 in.
TruDepth

Choices

Variety of sweeps, shovels, and chisel points

Centerframe depth control wheels and tires

Option 1
Rigid: Castering front and walk-over tandem rear with (6) 9.5L-15 FI load range D tires
Option 2
3-section: mainframe: 3.05 m
10 ft
Castering front with (2) 11L-15 FI load range D tires and single rear with (2) 12.5L-15 FI load range F tires
Option 3
3-section mainframe of: 3.66 m
12 ft
through 10.4 m
34 ft
Castering front and walk-over tandem rear with (6) 11L-15 FI load range D tires
Option 4
3-section: mainframe: 3.66 m
12 ft
0 through 11.79 m
0 through 38.67
and mainframe of: 4.57 m
15 ft
Castering front and walk-over tandem rear with (6) 11L-15 FI load range F tires
Option 5
5-section: Castering front and walk-over tandem rear with (6) 12.5L-15 FI load range F tires

Wing frame wheels and tires

Option 1
3-section: mainframe: 3.05 m
10 ft
Castering front and walk-over tandem rear with (6) 11L-15 FI load range D tires
Option 2
3-section: mainframe: 3.66 ft
12 ft
through 10.36 m
34 ft
Castering front and walk-over tandem rear with (6) 11L-15 FI load range D tires
Option 3
3-section: mainframe: 3.66 m
12 ft
10.97 through 11.79 m
36 through 38.67 ft
and mainframe: 4.57 m
15 ft
Castering front and walk-over tandem rear with (6) 11L-15 FI load range F tires
Option 4
5-section: (Inner wings):Castering front with (2) 11L-15 FI load range D tires and walk-over tandem rear with (4) 12.5L-15 FI load range F tires; (Outer wings): Castering front and walk-over tandem rear with (6) 11L-15 FI load range D tires

Stabilizer wheels

Option 1

Option 2

Option 3

Option 1

Option 2

Option 3

Tubing size

Rectangular box construction: 7.62x12.7 cm
3x5 in.

Telescoping

Yes

Tongue weight rating

45.4 kg
100 lb

GVW

10,000

Wiring harness for transport lights

includes Y-harness, allowing both the 2410 and towed implement lights to work simultaneously

Hydraulic hoses and couplers

Available as field attachment

Description

3-year frame and standard warranty
