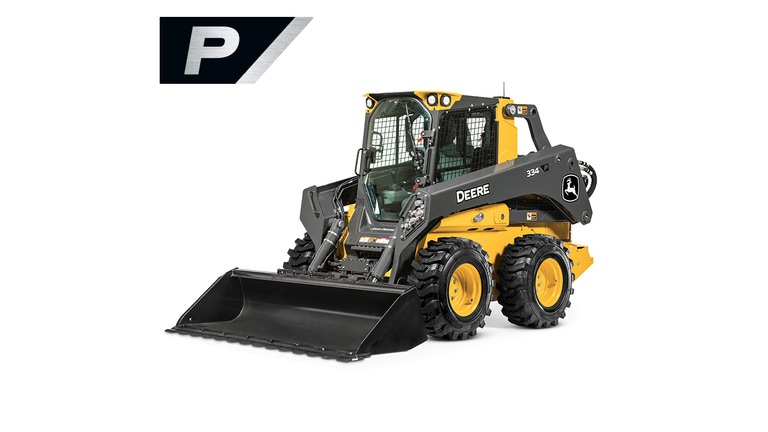

John Deere 334 P-Tier

Construction



Key Features

  • Gross Rated Power: 88.0 kW (118.0 hp)
  • Net Peak Power: 85.5 kW (114.7 hp)
  • Rated Operating Capacity: 1816 kg (4,000 lb.) with 1 standard counterweight set
  • Operating Weight: 4660 kg (10,264 lb.)
Call Today (806) 622-3990

   Call

VALUE YOUR TRADE

VALUE YOUR TRADE


Personal Information

Your Trade-In

Replacement Equipment

Talk to Sales




DESCRIPTION

Lift Geometry

Vertical



DRIVELINE

Engine Manufacturer

Yanmar

Engine Model

4TNV94FHT

Aspiration

Turbocharger. Intercooled

Displacement, ltr (Inches³)

3.1 (186.3)

Rated Speed, rpm

2500

SAE Net Power, kW (hp)

85.5 (114.7)

SAE Gross Power, kW (hp)

88 (118)

Max. Gross Torque, Nm (lbf / ft)

395 (291.3)

Tire size - Standard

14 x 17.5



DIMENSIONS

Length - No Bucket, mm (inches)

3180 (125.2)

Length - With Bucket, mm (inches)

3830 (150.7)

Width - No Bucket, mm (inches)

1990 (78.5)

Overall Height, mm (inches)

2210 (87)

Ground Clearance, mm (inches)

250 (9.7)

Wheelbase, mm (inches)

1270 (49.9)

Rear Departure Angle, Degrees

23.5

Height to Hinge Pin, mm (inches)

3350 (132)

Dump Angle, Degrees

48

Dump Height - Maximum, mm (inches)

2710 (106.7)

Reach - Max Dump Height, mm (inches)

810 (31.9)

Rollback - Ground Level, Degrees

35




  SHOW MORE     SHOW LESS
