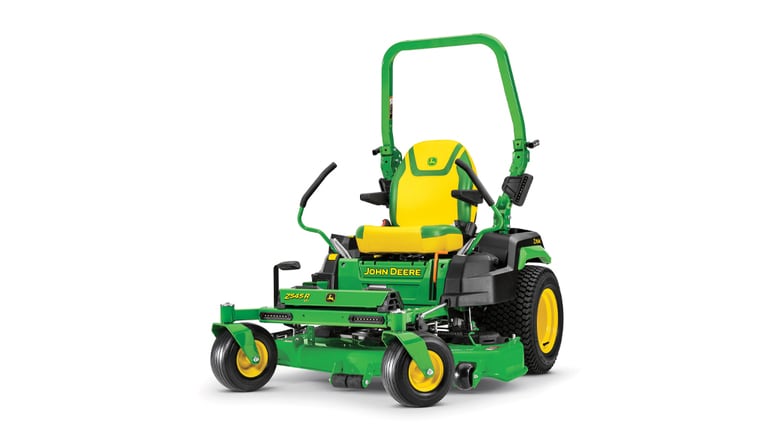

John Deere Z545R

Forward speed

0-9 mph
0-14.5 km/h

Reverse speed

0-4.5 mph
0-7.2 km/h

Speed and direction control

Twin premium levers

Control adjustment

2-height/9-fore-aft, 18 positions

Frame

Heavy-duty frame tubing

Primer/paint

E-coat/powder

Front caster tires

13x6.5-6

Front caster bearings

Sealed ball bearings

Drive tires

23x10.5-12

Hourmeter

Yes

Service interval decal

Yes

Storage compartment

Yes and covered

Cup holder

Yes

Seat back height

High back with armrests and ComfortGlide, 22.5 in.
57.1 cm

Fore-aft adjustment

While seated, 3 in.
7.6 cm

Seat suspension

Two springs and ComfortGlide

Type

Foot lift

Mower cut height

1-4 in.
2.5-10.2 cm

Cut height increments

0.25 in.
0.64 cm

Preset cut height

Yes

Width of cut

High capacity mower deck, 48 in.
122 cm
High capacity mower deck, 54 in.
137 cm
High capacity mower deck, 60 in.
152 cm

Type

High-capacity side discharge

Mower deck material

9 gauge
0.15 in.
3.8 mm

Mower drive system

V-belt

Type

Electric, 125 lb-ft
169.5 Nm

Drive

V-belt

Wheelbase

49.2 in.
125 cm

Overall length

81.9 in.
208 cm

Width without mower

48.7 in.
123.7 cm

Width with mower

48HC - 62.4 in.
158.5 cm
54HC - 68.3 in.
173.5 cm
60HC - 73.5 in.
186.7 cm

Width with mower (deflector raised for storage)

48HC - 53.6 in.
136.1 cm
54HC - 59.6 in.
151 cm
60HC - 65.6 in.
167 cm

Height

48.3 in.
122.8 cm
With rollover protective structure (ROPS) up position - 70.7 in.
179.6 cm

Weight

With mower and fuel, 48HC, 826 lb
375 kg
With mower and fuel, 54HC, 832 lb
378 kg
With mower and fuel, 60HC, 840 lb
382 kg

Rollover protective structure (ROPS)

Yes

Slope operating limit

15 degrees, 10 degrees with an MCS

Operator presence system

Yes

Park brake interlock

Yes

Operator video

Yes

Note 1

Mower wash port makes cleaning the deck easier

Note 2

Flip-up foot platform for easy service access

Note 3

18-position adjustable motion-control levers

U.S. warranty

4 year/500 hour bumper-to-bumper* (*Term limited to years or hours used, whichever comes first, and varies by model. See the LIMITED WARRANTY FOR NEW JOHN DEERE TURF AND UTILITY EQUIPMENT at JohnDeere.com or JohnDeere.ca/TUWarranty for details.)

Mulching system

Optional MulchControl attachment, 54 in.
137 cm
Optional MulchControl kit, 60 in.
152 cm

Rubber floor mat

Foot platform and toe board

Sun shade

Optional

Mounted sprayer

No

Storage cover

Yes

Light kit

4-point LED Light kit

Material collection system

Power Flow rear bagger, 6.5 bu
230 L
Not available on 60HC

Date collected

18-Aug-2020
