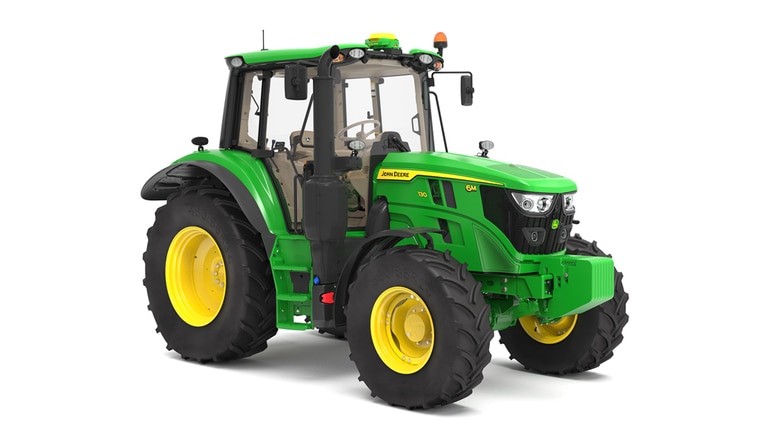

Name: John Deere 6M 130
Brand: John Deere
SKU: 6130M

Key Specs

Engine description	John Deere PowerTech™ PSS
Engine displacement	4.5 L 275 cu in.
Rated engine power	130 hp 96 kW
Maximum engine power	143 hp 105 kW
Rated PTO power (hp SAE)	100 hp 75 kW
Maximum PTO power	At 1000 PTO rpm with IPM: 88 kW 118 hp
Transmission type	Standard: John Deere 24-speed PowrQuad Plus 40 km/h Optional: John Deere 16-speed PowrQuad Plus 30 km/h John Deere 24-speed AutoQuad Plus 40 km/h & 50 km/h John Deere 24-speed CommandQuad Plus 40 km/h & 50 km/h AutoPowr™/IVT™ 40 km/h & 50 km/h Creeper available: PowrQuad Plus and AutoQuad Plus
Hydraulic pump rated output	Standard: 35-cc pump: 80 L/min 21 gpm Optional: 45-cc pump: 114 L/min 30 gpm
Rear hitch category (SAE designation)	2/3N
Base machine weight	6300 kg 13,889 lb

Engine specifications

Description	John Deere PowerTech™ PSS
Engine type	4045HL555
Rated speed	2100 rpm
Aspiration	Dual turbochargers, variable geometry turbo with fixed geometry turbo in series
Emission level	Final Tier 4
After treatment type	Diesel particle filter (DPF) with diesel oxidation catalyst (DOC) and selective catalytic reduction (SCR) using diesel exhaust fluid (DEF)
Displacement	4.5 L 275 cu in.

Engine performance

Rated power	130 hp 96 kW
Rated PTO power (hp SAE)	100 hp 75 kW
Maximum PTO power	At 1000 PTO rpm with IPM: 88 kW 118 hp
Intelligent Power Management (IPM)	Transport and/or mobile PTO applications Additional engine power (hp ISO) at 2100 rpm: 14.9 kW 20 hp
Power boost	10 percent
Maximum engine power	143 hp 105 kW
Engine peak torque	609 Nm
PTO torque rise	40 percent

Transmission

Type	Standard: John Deere 24-speed PowrQuad Plus 40 km/h Optional: John Deere 16-speed PowrQuad Plus 30 km/h John Deere 24-speed AutoQuad Plus 40 km/h & 50 km/h John Deere 24-speed CommandQuad Plus 40 km/h & 50 km/h AutoPowr™/IVT™ 40 km/h & 50 km/h Creeper available: PowrQuad Plus and AutoQuad Plus
Reverser	Electronic left-hand reverser
Creeper	Optional

Hydraulic system

Type	Standard: Pressure compensated (PC) Optional: Pressure-and-flow compensated (PFC) system with Load Sensing function
Pump rated output	Standard: 35-cc pump: 80 L/min 21 gpm Optional: 45-cc pump: 114 L/min 30 gpm
Number of rear selective control valves (SCVs)	Standard: Two ISO couplers Optional: Two to four ISO couplers
Number of mid selective control valves (SCVs)	Up to three
Joystick SCV control	Mechanical/electrical

Rear hitch

Remote control valves available	Standard
Hitch category (SAE designation)	2/3N
Rear hitch lift capacity (SAE designation)	Standard: Category 2/3N: 3600 kg 7930 lb Optional: Category 2/3N: 4100 kg 9031 lb
Maximum lift capacity behind lift points	Standard: Category 2/3N: 5650 kg 12,445 lb Optional: Category 2/3N: 6400 kg 14,097 lb
Sensing type	Electronic at lower link
Rear axle differential lock	Electrohydraulically with oil-cooled clutch

Drawbar

Drawbar category	Category 2
Maximum vertical load	1200-2000 kg (2649-4409 lb) Maximum vertical load dependent on drawbar position

Rear power take-off (PTO)

Type	Electrohydraulically operated, oil-cooled, multi-disc design
Engine rpm (at rated PTO speeds)	540 PTO: 1977 rpm 1000 PTO: 1972 rpm
PTO actuation	In-cab switch and optional external fender-mounted remote control

Front hitch

Category	3N
Electric power	Seven-pin electrical socket
Standard lift capacity	At hook ends: 3300 kg 7269 lb
Front power take-off (PTO)	Electrohydraulically engaged with oil-cooled, multi-disc design
PTO speed	1000 PTO: 1969 rpm

Rear axle

Type	Standard: flange-type rear axle Optional: Rack-and-pinion rear axle - 79-mm (3.1-in.) shaft (2550-mm/100.4 in.) Rack-and-pinion rear axle - 79-mm (3.1-in.) shaft - short version (2286-mm/90.0 in.) mm mm Rack-and-pinion rear axle - 86-mm (3.39 in.) shaft (2438-mm/96.0 in.)
Final drive type	Three planetary gear reduction
Rear differential lock	Electrohydraulically with oil-cooled clutch

Front axle

Type	Standard: MFWD Optional: Two-wheel drive (2WD) Triple-Link Suspension (TLS) MFWD axle (hydro-pneumatic, permanently active, triple link, self-leveling suspension with 100-mm [3.9-in.] suspension range) Triple-Link Suspension MFWD with brakes
Front axle differential lock	Self-locking differential

Tires

Front	380/85R24
Rear	460/85R34

Steering

Type	Dynamic load sensing, hydrostatic, flow metering

Electrical system

Alternator size	Standard: 14 V/125 amp Optional: 14 V/250 amp
Battery options	Standard: 12 V/154 amp-hr Optional: 12 V/174 amp-hr

Operator station

Rollover protective structure, OOS	Gearshift location - console/floor Console
Seat	Standard: Standard seat with air suspension Optional: Economy seat with mechanical suspension
Cab suspension	Optional: Mechanical Cab Suspension (MCS)
Instructional seat	Optional
Display	Cornerpost display (right-hand A-post) Functionality: Performance monitor and individual settings
Radio	Standard: Standard AM/FM stereo
Inner cab volume	3.0 m³ 105.9 cu ft
dB(A) rating	70 dBA
Cab glass area	4.85 m²

Dimensions

Wheelbase	2580 mm 101.6 in.
Overall width	2460 mm 96.8 in. (380/85R24 & 460/85R34)
Overall length	4470 mm 176.0 in. (inc. weight bracket)
Overall height	2840 mm 111.9 in. (380/85R24 & 460/85R34)
Front axle center	462 mm 18.2 in. (ground clearance)
Approximate shipping weight, Open;Cab	Cab: 6200 kg 13,669 lb

Weight

Base machine weight	Front axle 2520 kg 5556 lb Rear axle 3780 kg 8333 lb 6300 kg 13,889 lb
Maximum permissible weight	9500 kg 20,944 lb

Capacities

Crankcase oil volume	17 L 4.5 U.S. gal.
Fuel tank	205 L 54.2 U.S. gal.
Diesel exhaust fluid (DEF) tank	13.5 L 3.6 U.S. gal.
Cooling system	22 L 5.8 U.S. gal.
Transmission-hydraulic system	PowrQuad Plus/AutoQuad Plus/CommandQuad Plus: 53 L 14.0 U.S. gal. AutoPowr/IVT: 60.0 L 15.9 U.S. gal.

Serviceability

Interval for engine oil change	500 hours
Interval for hydraulic/transmission oil change	1500 hours
Interval for engine coolant change	6000 hours

Loaders

Loader	620R
Lift capacity at full height	MSL: 2246 kg 4951 lb NSL: 2468 kg 5442 lb
Maximum lift height	MSL: 4.1 m 161.5 in. NSL: 4.0 m 158.4 in.

Precision AG

Guidance	Optional: AutoTrac™ with Universal Display
Telematic	Standard: JDLink™
Remote diagnostics	Standard: JDLink™
