Name: John Deere 6M 155
Brand: John Deere
SKU: 6155m

Key Specs

Engine description	John Deere PowerTech™ PVS
Engine displacement	6.8 L 415 cu in.
Rated engine power	155 hp 114 kW
Maximum engine power	171 hp 125 kW
Rated PTO power (hp SAE)	120 hp 90 kW
Maximum PTO power	At 1000 PTO rpm: 103 kW 139 hp
Transmission type	Standard: John Deere 20-speed PowrQuad Plus 40 km/h Optional: John Deere 16-speed PowrQuad Plus 30 km/h John Deere 20-speed AutoQuad Plus 40 km/h & 50 km/h John Deere 20-speed CommandQuad Plus 40 km/h AutoPowr™/IVT™ 40 km/h & 50 km/h Creeper available: PowrQuad Plus and AutoQuad Plus
Hydraulic pump rated output	Standard: 45-cc pump: 114 L/min 30 gpm Optional: 60-cc pump: 155 L/min 41 gpm
Rear hitch category (SAE designation)	3N/3
Base machine weight	8000 kg 17,637 lb

Engine specifications

Description	John Deere PowerTech™ PVS
Engine type	6068HL555
Rated speed	2100 rpm
Aspiration	Single variable geometry turbocharger
Emission level	Final Tier 4
After treatment type	Diesel particle filter (DPF) with diesel oxidation catalyst (DOC) and selective catalytic reduction (SCR) using diesel exhaust fluid (DEF)
Displacement	6.8 L 415 cu in.

Engine performance

Rated power	155 hp 114 kW
Rated PTO power (hp SAE)	120 hp 90 kW
Maximum PTO power	At 1000 PTO rpm: 103 kW 139 hp
Intelligent Power Management (IPM)	Transport and/or mobile PTO applications Additional engine power (hp ISO) at 2100 rpm: 14.9 kW 20 hp
Power boost	10 percent
Maximum engine power	171 hp 125 kW
Engine peak torque	726 Nm
PTO torque rise	40 percent

Transmission

Type	Standard: John Deere 20-speed PowrQuad Plus 40 km/h Optional: John Deere 16-speed PowrQuad Plus 30 km/h John Deere 20-speed AutoQuad Plus 40 km/h & 50 km/h John Deere 20-speed CommandQuad Plus 40 km/h AutoPowr™/IVT™ 40 km/h & 50 km/h Creeper available: PowrQuad Plus and AutoQuad Plus
Reverser	Electronic left-hand reverser
Creeper	Optional

Hydraulic system

Type	Standard/optional: Pressure-and-flow compensated (PFC) system with Load Sensing function
Pump rated output	Standard: 45-cc pump: 114 L/min 30 gpm Optional: 60-cc pump: 155 L/min 41 gpm
Number of rear selective control valves (SCVs)	Standard: Two ISO couplers Optional: Two to four ISO couplers
Number of mid selective control valves (SCVs)	Up to three
Joystick SCV control	Mechanical/electrical

Rear hitch

Remote control valves available	Standard
Hitch category (SAE designation)	3N/3
Rear hitch lift capacity (SAE designation)	Standard: Category 3/3N: 3500 kg 7709 lb Optional: Category 3/3N: 3950 kg 8700 lb
Maximum lift capacity behind lift points	Standard: Category 3/3N: 6800 kg 14,978 lb Optional: Category 3/3N: 7650 kg 16,850 lb
Sensing type	Electronic at lower link
Rear axle differential lock	Electrohydraulically with oil-cooled clutch

Drawbar

Drawbar category	Category 2
Maximum vertical load	1200-2000 kg (2649-4409 lb) Maximum vertical load dependent on drawbar position

Rear power take-off (PTO)

Type	Electrohydraulically operated, oil-cooled, multi-disc design
Engine rpm (at rated PTO speeds)	540 PTO: 1997 rpm 1000 PTO: 2010 rpm
PTO actuation	In-cab switch and optional external fender-mounted remote control

Front hitch

Category	3N
Electric power	Seven-pin electrical socket
Standard lift capacity	At hook ends: 3300 kg 7269 lb
Front power take-off (PTO)	Electrohydraulically engaged with oil-cooled, multi-disc design
PTO speed	1000 PTO: 1969 rpm

Rear axle

Type	Standard: Rack-and-pinion rear axle - 92-mm (3.6 in.) shaft (2.550-m/100.4 in.) Optional: flange-type rear axle Rack-and-pinion rear axle - 92-mm (3.62 in.) shaft (2806-mm/110.5 in.)
Final drive type	Three planetary gear reduction
Rear differential lock	Electrohydraulically with oil-cooled clutch

Front axle

Type	Standard: MFWD Optional: Two-wheel drive (2WD) Triple-Link Suspension (TLS) MFWD axle (hydro-pneumatic, permanently active, triple link, self-leveling suspension with 100-mm [3.9-in.] suspension range) Triple-Link Suspension MFWD with brakes
Front axle differential lock	Self-locking differential

Tires

Front	420/85R28
Rear	480/80R42

Steering

Type	Dynamic load sensing, hydrostatic, flow metering

Electrical system

Alternator size	Standard: 14 V/125 amp Optional: 14 V/250 amp
Battery options	Standard: 12 V/154 amp-hr Optional: 12 V/174 amp-hr

Operator station

Rollover protective structure, OOS	Gearshift location - console/floor Console
Seat	Standard: Standard seat with air suspension Optional: Economy seat with mechanical suspension
Cab suspension	Optional: Mechanical Cab Suspension (MCS)
Instructional seat	Optional
Display	Cornerpost display (right-hand A-post) Functionality: Performance monitor and individual settings
Radio	Standard: Standard AM/FM stereo
Inner cab volume	3.0 m³ 105.9 cu ft
dB(A) rating	70 dBA
Cab glass area	4.85 m²

Dimensions

Wheelbase	2765 mm 108.9 in.
Overall width	2550 mm 100.3 in. (420/85R28 & 480/80R42)
Overall length	4733 mm 186.3 in. (inc. weight bracket)
Overall height	2980 mm 117.3 in.
Front axle center	535 mm 21.1 in. (ground clearance)
Approximate shipping weight, Open;Cab	Cab: 7800 kg 17,196 lb

Weight

Base machine weight	Front axle 3200 kg 7055 lb Rear axle 4800 kg 10,582 lb 8000 kg 17,637 lb
Maximum permissible weight	11,000 kg 24,251 lb

Capacities

Crankcase oil volume	23.5 L 6.2 U.S. gal.
Fuel tank	285 L 75.3 U.S. gal.
Diesel exhaust fluid (DEF) tank	16 L 4.2 U.S. gal.
Cooling system	27.4 L 7.2 U.S. gal.
Transmission-hydraulic system	PowrQuad Plus/AutoQuad Plus/CommandQuad Plus: 63.0 L 16.6 U.S. gal. AutoPowr/IVT: 62.0 L 16.4 U.S. gal.

Serviceability

Interval for engine oil change	500 hours
Interval for hydraulic/transmission oil change	1500 hours
Interval for engine coolant change	6000 hours

Loaders

Loader	640R
Lift capacity at full height	MSL: 2284 kg 5035 lb NSL: 2632 kg 5803 lb
Maximum lift height	MSL: 4.3 m 170.3 in. NSL: 4.3 m 170.4 in.

Precision AG

Guidance	Optional: AutoTrac™ with Universal Display
Telematic	Standard: JDLink™
Remote diagnostics	Standard: JDLink™

John Deere 6M 155

Key Features

Call Today (806) 622-3990

VALUE YOUR TRADE

Personal Information

Your Trade-In

Replacement Equipment

Key Specs

Engine description

Engine displacement

Rated engine power

Maximum engine power

Rated PTO power (hp SAE)

Maximum PTO power

Transmission type

Hydraulic pump rated output

Rear hitch category (SAE designation)

Base machine weight

Engine specifications

Description

Engine type

Rated speed

Aspiration

Emission level

After treatment type

Displacement

Engine performance

Rated power

Rated PTO power (hp SAE)

Maximum PTO power

Intelligent Power Management (IPM)

Power boost

Maximum engine power

Engine peak torque

PTO torque rise

Transmission

Type

Reverser

Creeper

Hydraulic system

Type

Pump rated output

Number of rear selective control valves (SCVs)

Number of mid selective control valves (SCVs)

Joystick SCV control

Rear hitch

Remote control valves available

Hitch category (SAE designation)

Rear hitch lift capacity (SAE designation)

Maximum lift capacity behind lift points

Sensing type

Rear axle differential lock

Drawbar

Drawbar category

Maximum vertical load

Rear power take-off (PTO)

Type

Engine rpm (at rated PTO speeds)

PTO actuation

Front hitch

Category

Electric power

Standard lift capacity

Front power take-off (PTO)

PTO speed

Rear axle

Type

Final drive type

Rear differential lock

Front axle

Type

Front axle differential lock

Tires

Front

Rear

Steering

Type

Electrical system

Alternator size

Battery options

Request Information

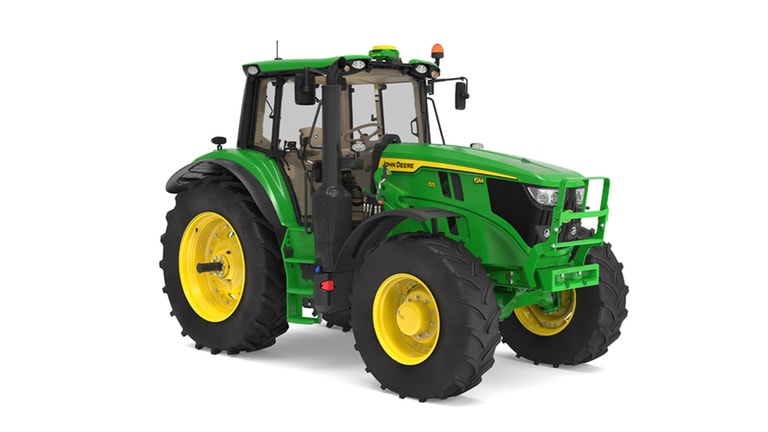

6M 155 Utility Tractor
