CARB |
|
EPA Final Tier 4 |
|
EU Stage V |
|

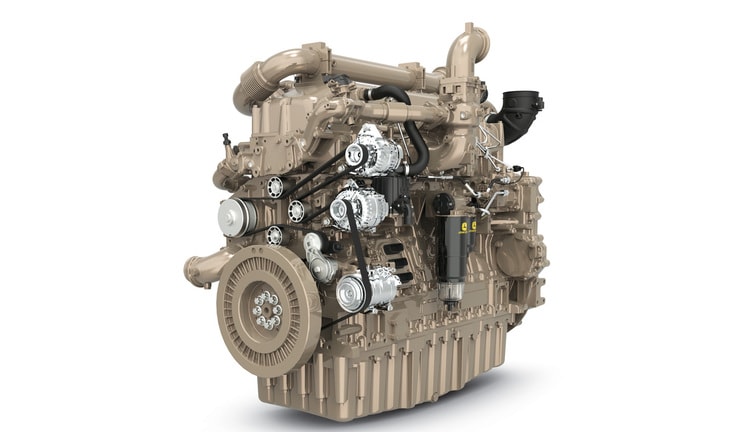

Model |
6180CI510 |
Number of cylinders |
6 |
Displacement-- L (cu in) |
18.0 (1098) |
Bore and Stroke-- mm (in) |
148 x 174 (5.8 x 6.8) |
Engine Type |
In-line, 4-cycle |
Aspiration |
Turbocharged and air-to-air aftercooled |
Length - mm (in) |
1750 (69)* |
Width-- mm (in) |
920 (36) |
Height-- mm (in) |
1507 (59) |
Weight, dry - kg (lb) |
2119 (4672)* |
Rated power |
522-677 kW (700-908 hp) @ 1900 rpm |
Peak power |
560-677 kW (751-908 hp) @ 1700 rpm |
Application rating |
Continuous, Heavy Duty, Intermittent |
Peak torque |
4250 Nm (3135 lb-ft) @ 1400 rpm |
