Cutterbar length	13.72 m 45 ft
Knife drive	Base: dual knife
Knife speed	490 cycles/min
Pickup reel operating speeds	6-70 rpm
Draper belts speed control	Hydraulic from cab (side belts only)

Platform

Type	Flex cutterbar draper

Cutterbar

Type	Straight-line knife drive system
Length	13.72 m 45 ft
Knife drive	Base: dual knife
Knife speed	490 cycles/min
Cutterbar tilt	Base: hydraulic, maximum tilt 9 degree (angle)

SHOW MORE SHOW LESS

Request Information
745FD HydraFlex™ Draper

First Name Last Name Email Address * Zip Code * Promo * Phone Number Questions or Comments

Compare {{items.length}}/4

✕ {{ item.title }}

You're almost there, select at least one more to compare!

Compare All

Number of slats	Six bat poly base
Fingers	Nylon
Diameter	106.7 cm 42 in.
Height control	Hydraulic
Speed control	Hydraulic
Reel lift	Cylinder range: 185 mm 7.3 in. Total range: 185 mm
Reel fore and aft	Cylinder range: 359 mm 14.1 in. Total range: 499 mm 19.6 in.
Reel resume	Base
Reel reverse	Base
Operating speeds	6-70 rpm

Width	Side belts: 101.6 cm 40 in. Center belts: 177.6 cm 70 in.
Clean height	Cleats: 19.05 mm 0.75 in.
Operating speed	Side belts: variable up to 228 m/min 748 fpm Center belts: 211 m/min 692 fpm
Speed control	Hydraulic from cab (side belts only)
Center belt reverse	Base

Diameter	414 mm 16 in.
Feed drum fingers	Heavy-duty and round with breakaway notch and retainer Diameter: 16 mm 0.625 in.
Number of fingers	20
Auger finger platform	Triple chevron, retracting
Finger reach	152 mm 6 in.
Drum/auger reverse	Base
Operating speed	234 rpm
Center clean out door	Base

Type	Electrohydraulic
Header height sensing on the ground	Base
Header height sensing off the ground	Optional

Platform length	12.9 m 42.3 ft
Overall operating depth	With dividers: 2.74 m 9 ft
Transport width, field position	13.3 m 43.7 ft

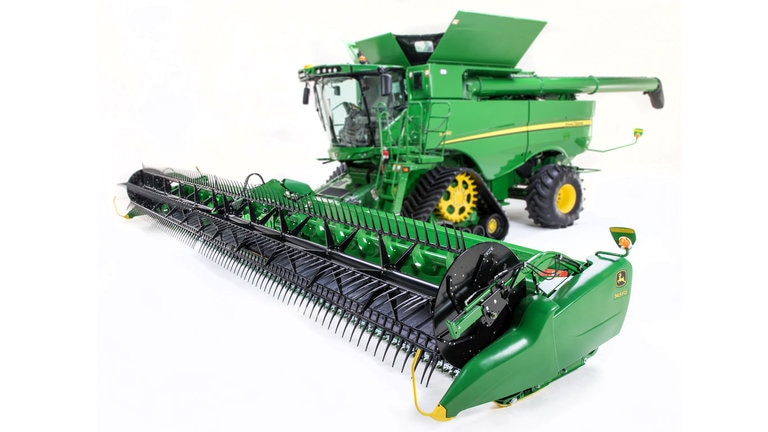

John Deere 745FD

Key Features

Call Today 866-475-0145

Key Specs

Cutterbar length

Knife drive

Knife speed

Pickup reel operating speeds

Draper belts speed control

Platform

Type

Cutterbar

Type

Length

Knife drive

Knife speed

Cutterbar tilt

Pickup reel

Number of slats

Fingers

Diameter

Height control

Speed control

Reel lift

Reel fore and aft

Reel resume

Reel reverse

Operating speeds

Draper belts

Width

Clean height

Operating speed

Speed control

Center belt reverse

Feed drum

Diameter

Feed drum fingers

Number of fingers

Auger finger platform

Finger reach

Drum/auger reverse

Operating speed

Center clean out door

Header height sensing

Type

Header height sensing on the ground

Header height sensing off the ground

Auxiliary top auger

Type

Dimensions

Platform length

Overall operating depth

Transport width, field position

Weight

Approximate weight
