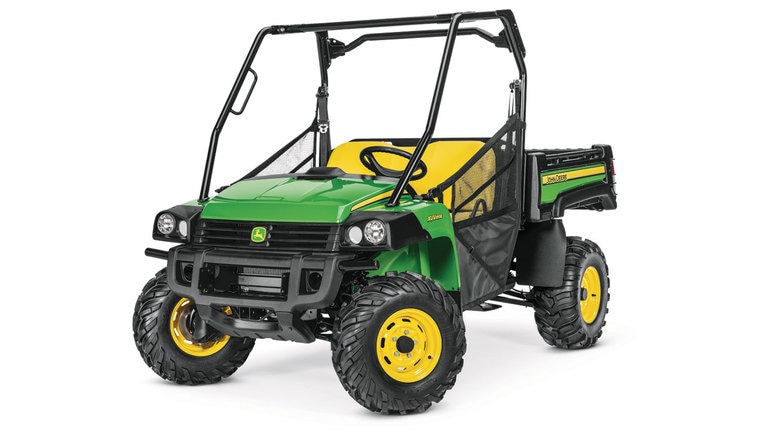

John Deere XUV855E

Gators



Key Features

  • Diesel power, durability and toughness
  • Deluxe Cargo Box Versatility
  • Superior Terrain Capability
Call Today 866-475-0145

I'm Interested    Call





Key Specs

Engine power

22.8 hp
17.0* kW

Maximum traveling speed

0-32 hi forward, 0-15 lo forward, 0-17 reverse mph
0-51 hi forward, 0-24 lo forward, 0-27 reverse km/h

Cargo box dimensions

1143 x 304.8 x 1320 mm
45 x 12 x 52 in.

Cargo box capacity (weight)

454 kg
1000 lb

Towing capacity

1500 lb
680 kg

Front suspension

Fully independent dual A-Arm with adjustable coils

Rear suspension

Fully independent dual A-Arm with adjustable coils and sway bar

Final drive

Two speed, oil bath

Four wheel drive

On-demand true four-wheel drive system

Fuel capacity

7.3 U.S. gal.
27.6 L



Engine

Type

4-cycle diesel

Displacement

854 cc

Power

22.8 hp
17.0* kW

Cooling system

Liquid



Drivetrain

Transmission

Continuously Variable Transmission (CVT) with clutch enclosure

Final drive

Two speed, oil bath

Four wheel drive

On-demand true four-wheel drive system

Traction assist

Positive locking, mechanically actuated (hand-operated)

Descent control

Yes

Maximum traveling speed

0-32 hi forward, 0-15 lo forward, 0-17 reverse mph
0-51 hi forward, 0-24 lo forward, 0-27 reverse km/h
