The E trim has no electric power-assist steering (EPAS) and has minimal electronic connections. This trim level is open station only.

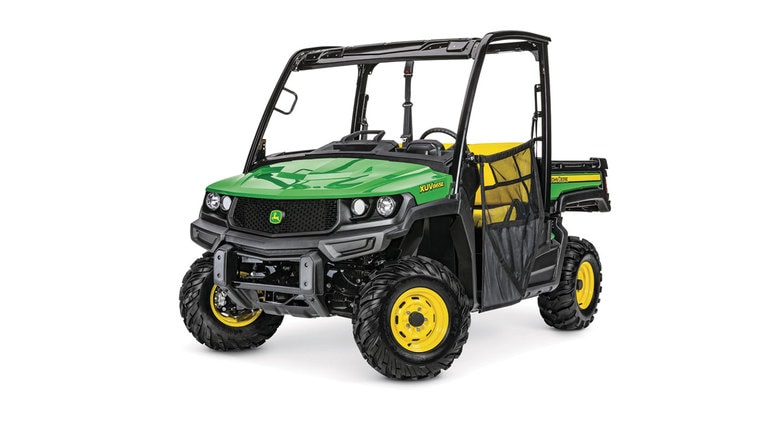

E-trim level open operator station
On E-trim vehicles, adding attachments and accessories requires additional electrical harnesses and structure. See the chart below for information regarding what is required for attachments and accessories.
|
Cargo box lift |
Backup alarm |
Brake / Tail / Reverse lights |
Speed limiter kit |
Base radio |
Heater |
4500 lb winch |
Premium radio (base radio kit needed) |
LED lights - front OPS |
Windshield wiper |
Windshield washer |
LED lights - brushguard |
LED headlights |
Trun signals |
Horn |
Beacon light |
LED lights - rear OPS |
Sprayers |
Spreaders |
AMS integration kit |
E |
|
|
|
|
|
a |
a |
a,c |
a,c,d |
a,c,d |
a,c,d |
a,b |
a,b |
a,b |
a,b |
a,c,e |
a,c,e |
a,f |
a,f |
a,c,e,f |
M open |
|
|
|
|
|
|
|
c |
c,d |
c,d |
c,d |
b |
b |
b |
b |
c,e |
c,e |
f |
f |
c,e,f |
M cab |
|
|
|
|
|
|
|
|
|
|
|
b |
b |
b |
b |
e |
e |
f |
f |
e,f |
R |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
f |
f |
f |
|
= connections in base harness |
a |
E-spec Attachment Harness |
b |
Front Attachments Harness |
c |
Roof attachment harness |
d |
Front cab harness |
e |
Rear cab harness |
f |
Dash port harness |
* |
If blank, the base chassis harness has the connector for the attachment |
Build-to-order options
- Roof is standard on all units – can order less roof on open station units
- Available factory-installed winch on M- and R-trim units
- Available factory-installed front glass windshield on M Trim open station units
- Available factory-installed rear glass panel on M Trim open station units
- Available factory-installed brush guard
- Available factory-installed brush guard extensions
- Available factory-installed rear cargo box fender guards (rear bumper required, also factory installed)
