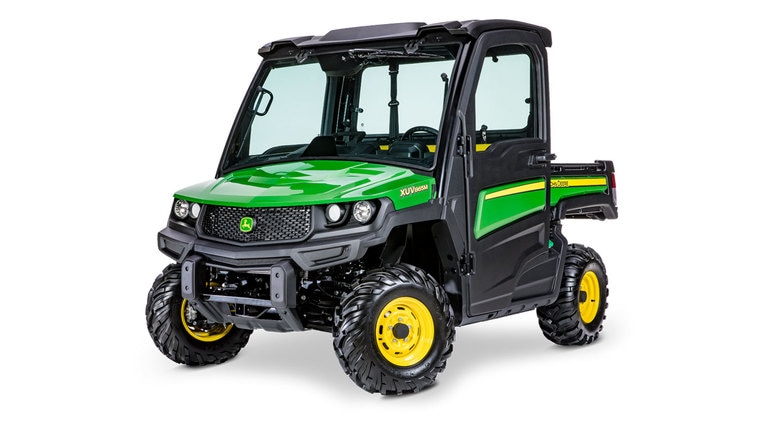

John Deere XUV865M Cab

Front

Fully independent dual A-Arm with adjustable coils; 7.9 inches (200.7 mm) of travel

Rear

Fully independent dual A-Arm with adjustable coils and sway bar; 9.1 inches (231.14 mm) of travel

Type

Front/rear hydraulic disc with twin piston front calipers

Park brake

Driveline, internal wet multi-disc, foot operated (hand release)

Front

25x9-12 Terrahawk AT, 27x9-R14 Maxxis Big Horn Radials (on Alloy Rims), or Maxxis Big Horn Radials (on Steel Rims)

Rear

25x11-12 Terrahawk AT, 27x11-R14 Maxxis Big Horn Radials (on Alloy Rims), or Maxxis Big Horn Radials (on Steel Rims)

Wheelbase

2146 mm
84.5 in.

Dry weight

839 kg
1845 lb
With Cab and HVAC: 1001 kg
With Cab and HVAC: 2202 lb
*Additional Attachments and Accessories will add weight

Length

3228 mm
127 in.

Width

1618 mm
63.7 in.
With doors: 1763 mm
With doors: 69.4 in.

Height

1981 mm
78 in.
With roof: 1987 mm
With roof: 78.25 in.

Tread centers

Front: 1341 mm
Front: 52.8 in.
Rear: 1259 mm
Rear: 49.6 in.

Ground clearance

284 mm
11.2 in.

Fuel capacity

42.4 L
11.2 U.S. gal.

Cargo box dimensions

1143 x 304.8 x 1320 mm
45 x 12 x 52 in.

Cargo box capacity (weight)

454 kg
1000 lb

Payload capacity

680 kg
1500 lb

Towing capacity

907 kg
2000 lb

Hitch

Standard 2-in. receiver

Color

Green/Yellow, Camouflage, Olive and Black

Power steering

No on E Trim; Yes on M and R Trim

Battery / Alternator / Power port

480 CCA 55 amp @ 7000 rpm, regulated, 660 watts (85 amp @ 7000 rpm, 1020 watts, for HVAC units)

Instrumentation

Digital Display (system diagnostic light, speed, rpm, 4WD indicator, fuel level, coolant temperature, hour meter, miles, park brake light, glow plug indicator)

Storage

4 Cup Holders (2 additional for cab units), in dash, Under Seat (56.69 L), Glovebox (3.85 L), Optional Under Hood - except for HVAC units or units with the dealer installed heater kit

Seating

Bench (Available Bucket Seats on E and M Trim)

Headlights

Halogen - Single Beam (LED Dual Beam on R Trim)

Country of Manufacture

U.S.
