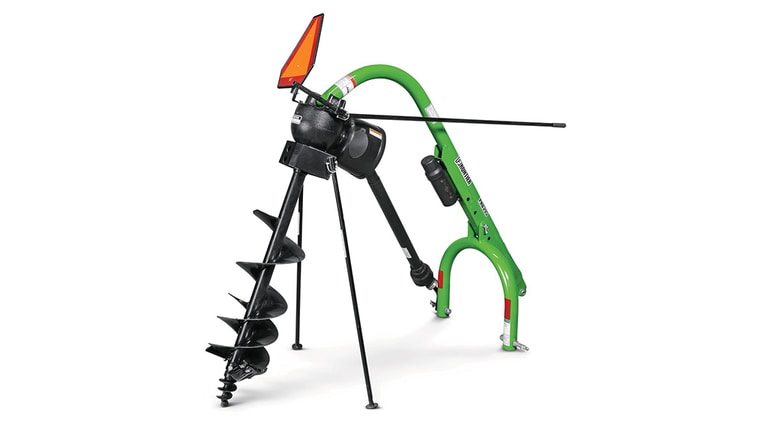

John Deere PHD1 Series

Name: John Deere PHD1 Series
Brand: John Deere
SKU: PHD1_XF

Attachments (Tractors)

Personal Information

First Name* Last Name* Email* Phone Number*

Equipment to be traded* Comments

Equipment Model*

Local Dealership* Contact Method*

Boom OD	PHD125: 7.3 cm 3 in. PHD235: 8.9 cm PHD395: Reinforced: 8.9 cm
Yoke OD	PHD125: 6 cm 3 in. PHD235: 7.9 cm PHD395: Reinforced: 7.9 cm

rpm	PHD125: 185 rpm PHD235: 185 rpm PHD395: 180 rpm

PHD125: 2.92:1
PHD235: 2.92:1
PHD395: 3:1

SHOW MORE SHOW LESS

Compare {{items.length}}/4

You're almost there, select at least one more to compare!

Compare All

Unit	PHD125: 50.8 kW 177 lb PHD235: 90.7 kW 178 lb PHD395: 104.3 kg 245 lb
Shipping (2 per case)	PHD125: 149.7 kg 354 lb PHD235: 213.2 kg 356 lb PHD395: 249.5 kg 490 lb

Auger weight	PHD125: 6 X 36 AUGER 21 lb PHD125: 9 X 36 AUGER 32 lb PHD125: 12 X 36 AUGER 43 PHD235, PHD395: 6 X 48 AUGER 33 lb PHD235, PHD395: 9 X 48 AUGER 41 PHD235, PHD395: 12 X 48 AUGER 60 lb PHD395: 18 X 48 AUGER 85 lb PHD395: 24 X 48 AUGER 92 lb
Auger flighting type	PHD125: Semi-Double Flighting PHD135: Semi-Double Flighting PHD395: 6, 9, 12, 18: Semi-Double Flighting PHD395: 24 : Double Flighting
Auger dimensions	PHD125: 6 X 36 AUGER PHD125: 9 X 36 AUGER PHD125: 12 X 36 AUGER PHD235, PHD395: 6 X 48 AUGER PHD235, PHD395: 9 X 48 AUGER PHD235: 12 X 48 AUGER PHD395: 12 X 48 AUGER PHD395: 18 X 48 AUGER PHD395: 24 X 48 AUGER
Auger Points	PHD125: Cast Ductile Iron PHD235: Cast Ductile Iron PHD395: Cast Ductile Iron PHD125: Screw Point PHD235: Spiral Point PHD395: Spiral Point
Cutting Edges	PHD125: Replaceable Cutting edges PHD235: Replaceable Carbide Cutting Edge PHD395: Replaceable Carbide Cutting Edge
