John Deere DH12 Series

Attachments

Key Features

Sealed bearings increase life and reduce maintenance

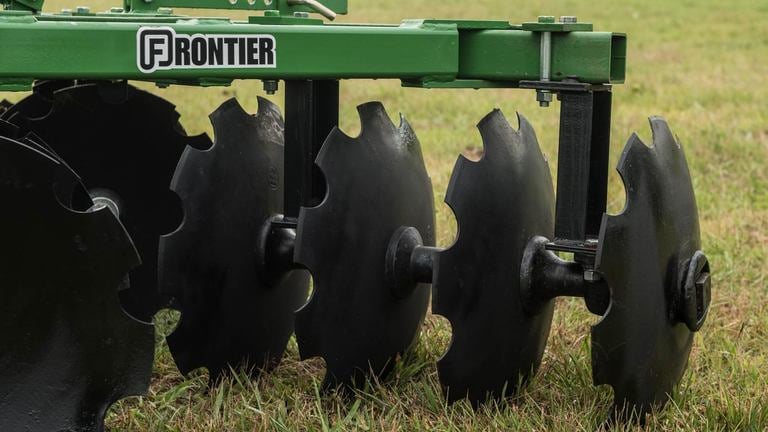

Notched or spherical blades
iMatch™ compatible
Field-installed middle breaker kit

Call Today 866-475-0145

I'm Interested Call

Dimensions

Working width

2.03 m
6.67 ft

Weight

Operating	333.4 kg 735 lb
Shipping	371.9 kg 820 lb

Tractor requirements

Horsepower range

Max: 33.6 kW
45 hp

SHOW MORE SHOW LESS

Request Information
DH12 Series Disk Harrows

First Name Last Name Email Address * Zip Code * Promo * Phone Number Questions or Comments

Compare {{items.length}}/4

✕ {{ item.title }}

You're almost there, select at least one more to compare!

Compare All

Type	Integral
Category	Cat. 1

Spacing	Front 19.1 cm 7.5 in. Rear 19.1 cm 7.5 in.
Size	18 (45.7)
Thickness	3 Nm 0.1181 in.
Quantity	20
Type	Notched (front) / Notched (rear) Standard Smooth (front) / Smooth (rear) Available Notched (front) / Smooth (rear) Available

Diameter	25.4 mm 1 in.
Type	Square
Material	Steel

Front	2, 9, 13, 24 degree (angle)
Rear	5, 11, 20, 27 degree (angle)

Frame	76.2x76.2x3 mm 3x3x0.1196 in. and 76.2x76.2x4.8 mm 3x3x0.1875 in.
Gang	76.2x76.2x4.8 mm 3x3x0.1875 in.

John Deere DH12 Series

Key Features

Call Today 866-475-0145

Dimensions

Working width

Weight

Operating

Shipping

Tractor requirements

Horsepower range

Hitch

Type

Category

Blade

Spacing

Size

Thickness

Quantity

Type

Gang axle

Diameter

Type

Material

Gang angles

Front

Rear

Tubing

Frame

Gang

Bearing hanger

Material

Size

U-bolt size

Bearing type

Set-up time

Labor hours

Warranty

Time period

Request Information
DH12 Series Disk Harrows

Material	Reinforced formed steel plate
Size	12.7 mm 0.5 in.
U-bolt size	15.9 mm 0.625 in.
Bearing type	Self-aligning sealed ball bearing in pre-riveted flange
