John Deere Precision Ag Technologies


">

John Deere DTS10

Sprayers



Key Features

  • Hagie Dual Tank System (DTS) with decades of proven application performance
  • Two-solution tanks mounted low between axles
  • Lighter weight (20,000 lbs.) allows early field access
  • Low center of gravity, balanced front-to-back, side-to-side
  • John Deere Precision Ag Technologies


Call Today 866-475-0145

I'm Interested    Call





Key Specs

Engine

Peak rated power
167 kW
225 hp

Solution system - Capacity

Two tanks - per tank - 1890 L
500 gal.

Rinse tank capacity

208 L
55 gal.

Boom length options/Material

18/24 and 18/27 m
60/80 and 60/90 ft

Spray speed range

0.8 to 32 km/h
0.5 to 20 mph

Transport speed, maximum

48 km/h
30 mph

Suspension

Independent air-ride

Crop clearance with standard tires

182 cm
72 in.



Engine

Peak rated power

167 kW
225 hp

Emissions

Final Tier 4 (FT4)

Number of cylinders

Six

Displacement

6.7 L
409 cu in.

Alternator

200 amp

Fuel tank capacity

378.5 L
100 gal.

Diesel exhaust fluid (DEF) tank capacity

37.9 L
10 gal.



Solution system

Capacity

Per tank - 1890 L
500 gal.

Tank material

Poly

Rinse tank capacity

208 L
55 gal.

Quick fill size

Quick-fill connection - 5.1 cm
2 in.

Rate control make

John Deere
Raven / Ag Leader optional

Automatic section control

Optional

Solution system control

John Deere
Raven/Ag Leader - optional

Fill location

Rear

Chemical eductor

Optional

Chemical eductor capacity (size)

30.3 L
8 gal.

Flow meter size

5.8 cm
2 in.

Pressure strainer

50 mesh

Boom strainer

Optional 80 mesh




  SHOW MORE     SHOW LESS




Request Information

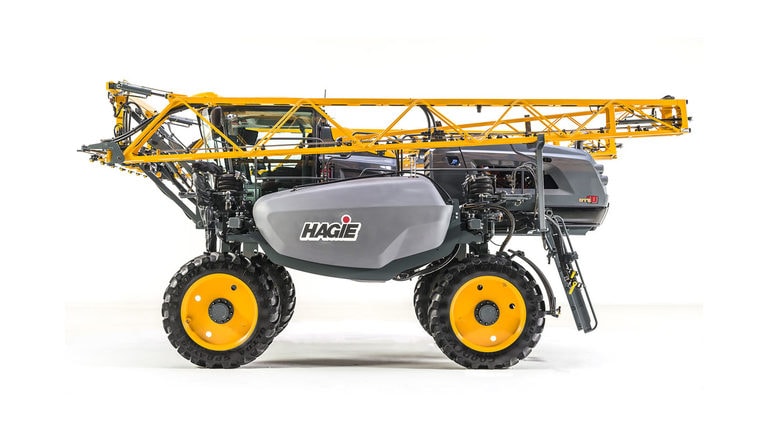

DTS10 Hagie™ Self-Propelled Sprayer
