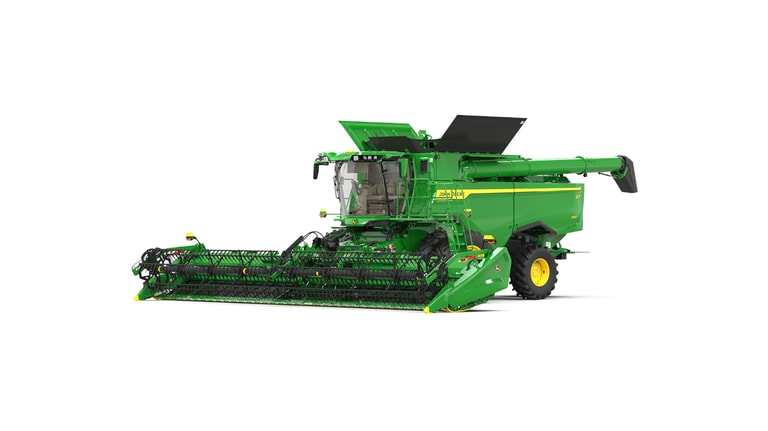

John Deere S770


Key Features

  • Combine Advisor™ package helps to set, optimize and automate main combine functions when conditions change
  • Fully automated yield sensor calibration with ActiveYield™ supplies accurate data with no time spent calibrating
  • Comfortable S700 cab is common with tractors and sprayers for ease of use
  • Continued quality manufacturing of S-Series combines maximizes uptime and productivity
Call Today 866-475-0145

I'm Interested    Call

Key Specs

Engine type

John Deere PowerTech™ PSS engine
9 L
548 cu in.

Rated power

292 kW
391 hp

Fuel capacity

950 L
250 gal.

Rotor length

312 cm
123 in.

Rotor diameter

76.2 cm
30 in.

Concave area

1.1 m2
11.8 sq ft

Separating area

1.54 m2
16.6 sq ft

Total cleaning area (louvered)

5.1 m2
54.9 sq ft

Grain tank size

10,600 L
300 bu

Unloading rate

116.3 L/s
3.3 bu/sec


Engine type

John Deere PowerTech PSS engine
9 L
548 cu in.

Emission level

Final Tier 4 / Tier 2 (Australia/New Zealand)

Rated speed

2,200 rpm

Rated power

292 kW
391 hp

Power boost @ rated speed

25 kW
34 hp

Fuel capacity

950 L
250 gal.


Drive type

Fixed or variable or multi-speed

Conveyor chain slat type

Cast iron


139.7 cm
55 in.


172.5 cm
67.9 in.

Feed Accelerator, Stone Trap (FAST)
