Width	4.2 m 13.67 ft, in.
Ground clearance with base blades	20.3 cm 8 in.
Wheel hub bearings	Dual Tapered Roller Bearings
Height	4 m 13.2 ft
Length	8.5 m 28 ft

Working

Approximate working width	7.2 m 23.5 ft, in.
Maximum penetration	22.9 cm 9 in.

Weight

Net	7842.6 kg 17290 lb
Weight per disk blade	145.1 kg 320 lb

SHOW MORE SHOW LESS

Request Information

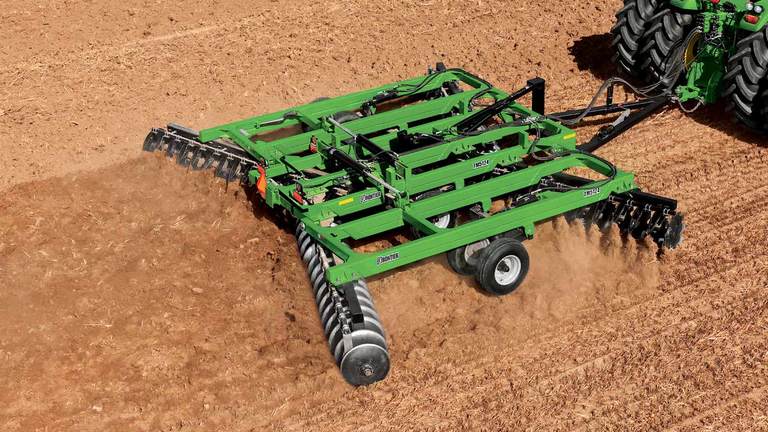

TM51 Series Tandem Disk Harrows

First Name Last Name Email Address * Zip Code * Promo * Phone Number Questions or Comments

Compare {{items.length}}/4

✕ {{ item.title }}

You're almost there, select at least one more to compare!

Compare All

Type	Tandem double offset
Duty	General Purpose
Tube size	15.2x10.2x0.95 cm 6x4x0.375 in.

Spacing	26.7 cm 10.5 in.
Quantity	58
Type	Notched (front) Notched (rear) Standard Smooth (front) Smooth (rear) Optional Notched (front) Smooth (rear) Optional
Blade concavity	Standard: high Optional: low

Blade option one	660x7.9 mm 26x0.312 in.
Blade option two	711x7.9 mm 28x0.312 in.

Front angle	3 Positions
Rear angle	3 Positions
Axle size	4.1 cm 1.625 in. or 5.4 cm 2.125 in.
Axle material	Round heat treated alloy steel, threaded on both ends
Bearing type	Oil bath tapered roller
Bearing wear plates	Standard
Bearing standards	Welded, reinforced
Scrapers	Adjustable

Markings	SMV
Safety tow chain	Yes
Lights	Yes

Type	Eight implement
Size	11L x 15 in. 8 ply
Wheel hub type	8 Bolt
