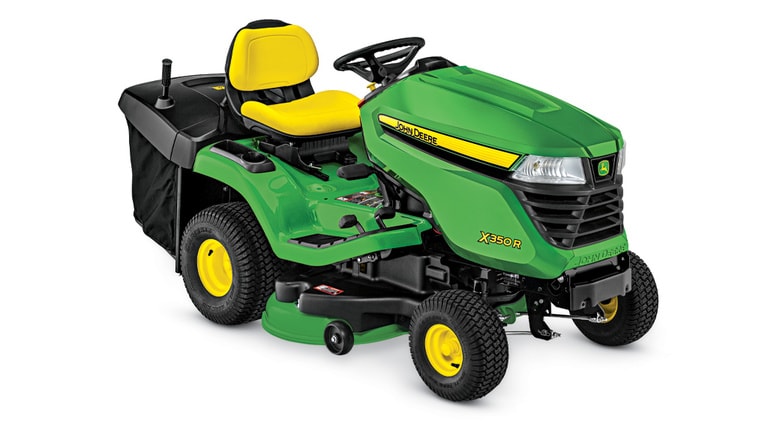

John Deere X350R

Battery

12 V
340 CCA

Charging system

Flywheel alternator, regulated, 15 amp

Engine starter

Bendix

Hourmeter

Yes

Headlights

Two standard, incandescent, 27 W

Taillights or reflector

No

Backup lights

No

Rear work lights

No

12-V outlet

Optional

Type

K46 hydrostatic integrated with transaxle

Control

Twin Touch™ pedals

Cruise control

Yes, button on dash

Oil cooler

Fins and fan on transaxle

Oil filter

Internal, not replaceable

Differential lock

No

Forward speed

0-5.3 mph
0-8.5 km/h

Reverse speed

0-4 mph
0-6.4 km/h

Brakes

Internal wet disc

Frame

Welded heavy-duty

Primer/paint

E-coat/powder

Weight bracket

Optional front

Receiver hitch

No

Front axle

Cast iron front axle, front wheel ball bearings

Spindle bushings

No

Front tires

15x6-6

Rear tires

20x10-8

Hood material

Molded-in color hood material reduces sound, will not rust or dent

Fender deck material

Stamped steel

Floor mats

Sure-grip rubber

Storage

On fender and under seat

Service interval decal

Yes

Fender handles/grips

No

Cup holder

Yes

Equipment mounting

Yes, front

Type

Manual, sector and pinion

Four-wheel steer

Not available on this model

Steering wheel

Large, 14 in.
35.6 cm

Tilt steering wheel

No

Turning radius

16.5 in.
42 cm

Uncut circle radius

Right, 23 in.
58.4 cm
Left 28 in.
71.1 cm

Type

Open-back design with grasp

Seat back height

15 in.
38.1 cm

Armrests

No

Fore-aft adjustment

While seated, slide rail, 14-position, 7 in.
17.8 cm

Seat suspension

Tilt, two coil springs, three-position no-tools adjustment for operator weight

Type

Foot pedal with non-adjustable spring assist, optional adjustable spring assist kit available (required for snow blower use)

Hydraulic outlets

No

Mower cut height

13 positions, 1-4 in.
2.5-9.5 cm

Cut height increments

0.25 in.
0.64 cm

Preset cut height

Yes

Type

Rear discharge, rear collect, mulch

Cutting width

42 in.
107 cm

Construction

Stamped steel deck shell

Mower deck material

11 gauge
0.12 in.
3 mm

Mower wash port

Yes

Mower drive system

Electric power take-off (PTO) clutch, in-line belt

Mower wheels

Three

Mower wheel adjustment

Four-position, tool required

Mower level adjustment

Exact Adjust ports and onboard deck-leveling gauge

Type

Slide under tractor

Front draft arms

Attached with spring pins at two points

Rear draft arms

Two pins and spring clips

Mower wheels rotate

No

Drive system

Dual belt

Meets ANSI standard

Yes

Meets OPEI standard

Yes

Backup protection

Reverse Implement Option (RIO)

Safety video

Yes

Notes

Includes rear hopper and mulch plug, optional rear deflector available
One-piece hood for easy service access, molded-in color hood material reduces sound and will not rust or dent
Durable E-coat primer and powder-paint finish

Warranty

4 year/300 hour bumper-to-bumper* (*Term limited to years or hours used, whichever comes first, and varies by model. See the LIMITED WARRANTY FOR NEW JOHN DEERE TURF AND UTILITY EQUIPMENT at JohnDeere.com or JohnDeere.ca/TUWarranty for details.)

Mowers

Rear discharge, rear collect (standard), 42 in.
107 cm

Rear bagger

Rear hopper, 8.5 bu
300 L

Mulching system

Standard mulch plug

Front thatcher

38, 46, 54 in.
96.5, 116.8, 137.2 cm

Front blade

44 in.
111.8 cm

Snow blower

Two-stage, 44 in.
111.8 cm

Sprayer

Tow-behind, 15 U.S. gal.
56.8 L
Tow-behind, 25 U.S. gal.
94.6 L

Spreader

Tow-behind, 125 lb
57.7 kg
Tow-behind, 175 lb
79.4 kg

Front bumper

Styled bumper option

Brush guard

Yes

Grass striping

Lawn striping kit

Tractor shovel

40 in.
101.6 cm

Tow-behind tools

16

Height

47 in.
120 cm

Overall length

99 in.
251.4 cm

Wheelbase

49.4 in.
125.5 cm

Width with mower

43.8 in.
111 cm

Width without mower

38 in.
96.5 cm

Weight

Mower, no fuel, 646 lb
293 kg
