Home New Equipment Combines X9 1100
Combine

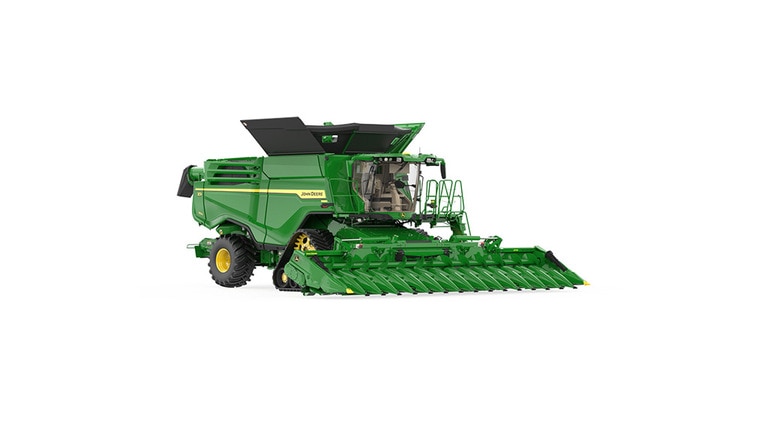

John Deere X9 1100

Combines Models


Key Features

  • 690 Max engine horsepower
  • 5.3 bu/s (186.7 liters/s) peak unload rate
  • 460-bushel (16,210-liter) power folding grain tank
  • Integrated G5Plus CommandCenter™ Display and StarFire™ Receiver with available SF-RTK
Call Today (806) 622-3990

   Call

VALUE YOUR TRADE

VALUE YOUR TRADE

Personal Information

Your Trade-In

Replacement Equipment

Talk to Sales



Key Specs

Engine type

John Deere PowerTech™ PSS 13.6 L
830 cu in.
Rated power

450 kW
603 hp
Fuel capacity

1249.2 L
330 gal.
Rotor length

3.51 m
11.5 ft
Rotor diameter

60.1 cm
24 in.
Concave area

1.6 m2
17.22 sq ft
Separating area

3.6 m2
38.75 sq ft
Total cleaning area (louvered)

6.97 m2
75.02 sq ft
Grain tank size

16,200 L
460 bu
Unloading rate

186 L/s
5.3 bu/sec
Peak unloading rate

186 L/s
5.3 bu/sec


Engine

Engine type

John Deere PowerTech PWS 13.6 L
830 cu in.
Emission level

Final Tier 4 (FT4)
Rated speed

1900 rpm
Rated power

450 kW
603 hp
Power boost @ rated speed

39.5 kW
53 hp
Fuel capacity

1249.2 L
330 gal.
Engine family

PowerTech
Maximum power

515 kW
690 hp


Feeding

Drive type

Fixed or variable speed
Conveyor chain slat type

Four-strand chain with formed steel slats
Width

1720 mm
67.7 in.
Feed Accelerator, Stone Trap (FAST)

Reverser
Modulated feederhouse reverser
Eight-wing chevron FAST



  SHOW MORE     SHOW LESS
